Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

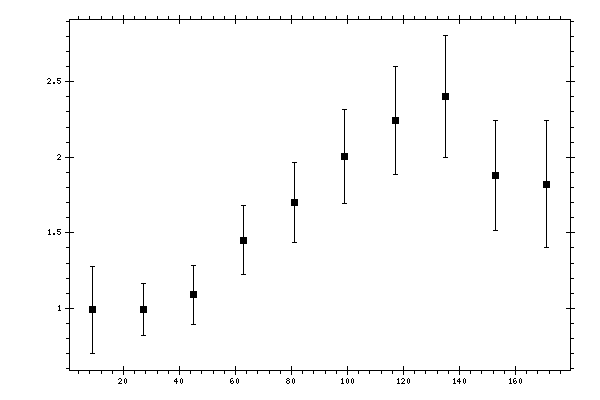

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.990619 | 0.285864 |
| 27 | 0.99587 | 0.171756 |
| 45 | 1.09001 | 0.196337 |
| 63 | 1.4513 | 0.227459 |
| 81 | 1.70204 | 0.262971 |
| 99 | 2.00507 | 0.313873 |
| 117 | 2.2413 | 0.358489 |
| 135 | 2.40215 | 0.400644 |
| 153 | 1.87896 | 0.363198 |
| 171 | 1.82291 | 0.421444 |
