Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

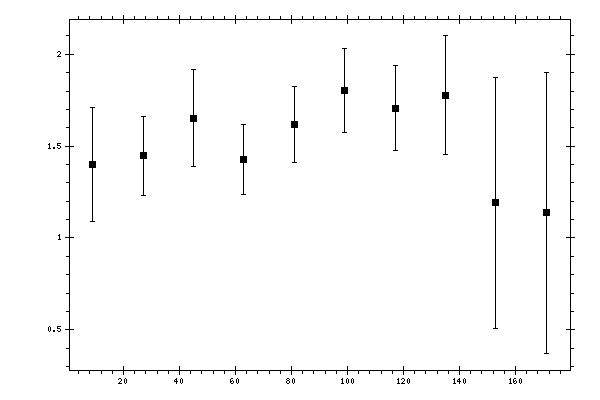

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.3994 | 0.310049 |
| 27 | 1.44666 | 0.213102 |
| 45 | 1.65194 | 0.264756 |
| 63 | 1.42766 | 0.191395 |
| 81 | 1.61772 | 0.208112 |
| 99 | 1.80328 | 0.231068 |
| 117 | 1.7069 | 0.231489 |
| 135 | 1.77665 | 0.324062 |
| 153 | 1.19204 | 0.684214 |
| 171 | 1.13697 | 0.764096 |
