Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|

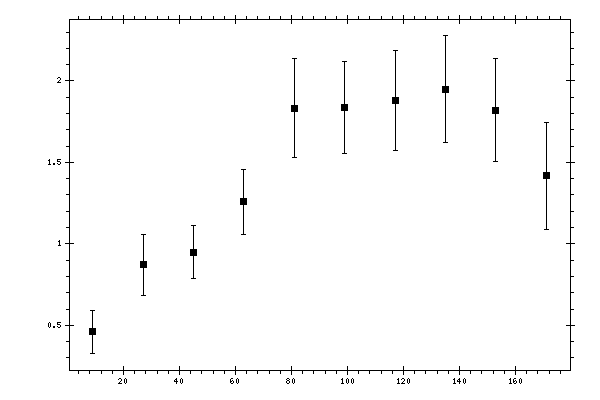

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.461398 | 0.132003 |
| 27 | 0.87103 | 0.185945 |
| 45 | 0.950061 | 0.163041 |
| 63 | 1.25952 | 0.199447 |
| 81 | 1.83321 | 0.303654 |
| 99 | 1.83809 | 0.281968 |
| 117 | 1.88099 | 0.306405 |
| 135 | 1.94877 | 0.327889 |
| 153 | 1.82083 | 0.318096 |
| 171 | 1.41774 | 0.327087 |
