Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.55 GeV | |
| Ebeam : | 5.75 GeV |
|

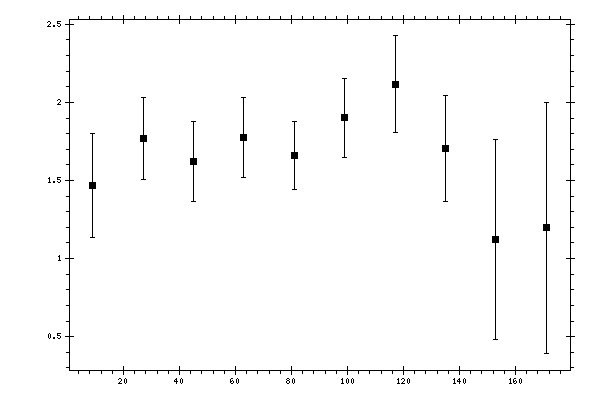

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.46882 | 0.331984 |
| 27 | 1.76705 | 0.263622 |
| 45 | 1.62294 | 0.254865 |
| 63 | 1.77479 | 0.256346 |
| 81 | 1.66025 | 0.218824 |
| 99 | 1.90207 | 0.251754 |
| 117 | 2.11772 | 0.308687 |
| 135 | 1.70273 | 0.338833 |
| 153 | 1.12275 | 0.641259 |
| 171 | 1.19743 | 0.803239 |
