Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.575 GeV | |
| Ebeam : | 5.75 GeV |
|

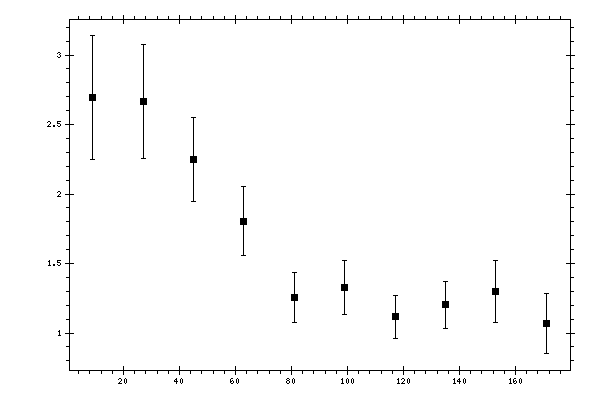

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.69185 | 0.445988 |
| 27 | 2.66803 | 0.41119 |
| 45 | 2.2503 | 0.303702 |
| 63 | 1.80407 | 0.2474 |
| 81 | 1.25536 | 0.1804 |
| 99 | 1.32926 | 0.195079 |
| 117 | 1.1175 | 0.155771 |
| 135 | 1.20281 | 0.170221 |
| 153 | 1.29974 | 0.225347 |
| 171 | 1.07044 | 0.21521 |
