Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.675 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

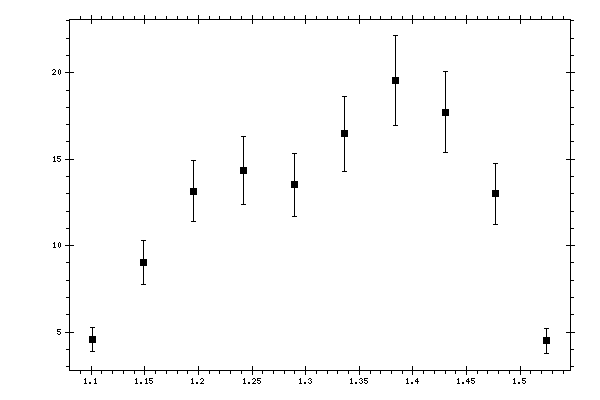

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.10134 | 4.55784 | 0.688849 |
| 1.14835 | 9.03436 | 1.26895 |
| 1.19536 | 13.1557 | 1.78609 |
| 1.24237 | 14.3496 | 1.94626 |
| 1.28938 | 13.51 | 1.84288 |
| 1.33639 | 16.48 | 2.1693 |
| 1.3834 | 19.5498 | 2.58264 |
| 1.43041 | 17.7003 | 2.34393 |
| 1.47742 | 12.9927 | 1.77246 |
| 1.52443 | 4.49068 | 0.711803 |
