Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.675 GeV | |
| Ebeam : | 5.75 GeV |
|

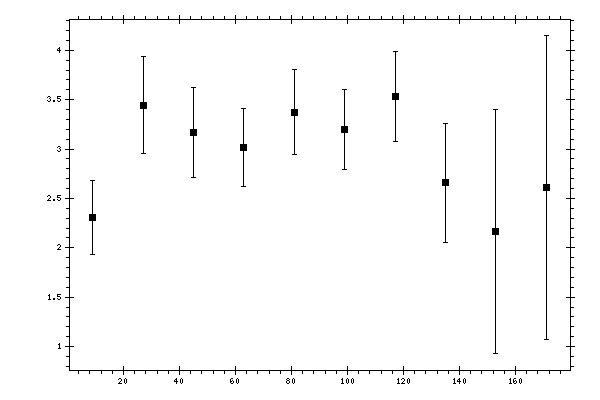

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.30805 | 0.376522 |
| 27 | 3.44474 | 0.488914 |
| 45 | 3.17137 | 0.455461 |
| 63 | 3.01708 | 0.395761 |
| 81 | 3.37399 | 0.432663 |
| 99 | 3.20052 | 0.407064 |
| 117 | 3.53024 | 0.452463 |
| 135 | 2.65882 | 0.604014 |
| 153 | 2.16571 | 1.23289 |
| 171 | 2.61005 | 1.53585 |
