Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.7 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

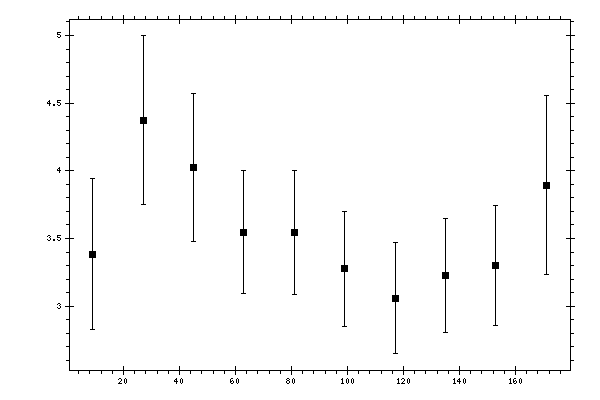

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 3.38532 | 0.55458 |
| 27 | 4.37518 | 0.622011 |
| 45 | 4.02381 | 0.54558 |
| 63 | 3.54686 | 0.452267 |
| 81 | 3.54594 | 0.457094 |
| 99 | 3.27515 | 0.42657 |
| 117 | 3.05998 | 0.407106 |
| 135 | 3.22659 | 0.417553 |
| 153 | 3.29773 | 0.443564 |
| 171 | 3.89242 | 0.661071 |
