Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.7 GeV | |
| Ebeam : | 5.75 GeV |
|

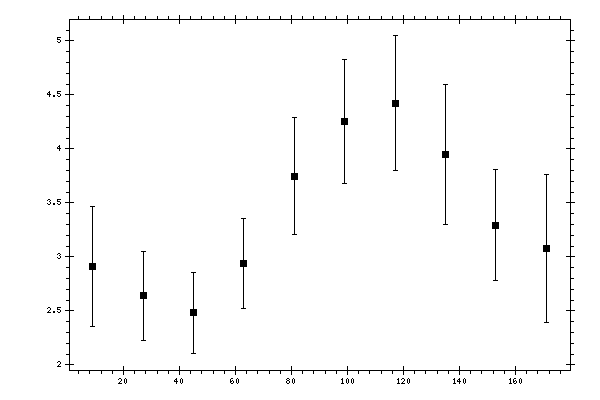

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.91322 | 0.556039 |
| 27 | 2.63946 | 0.41223 |
| 45 | 2.48123 | 0.371645 |
| 63 | 2.93869 | 0.418706 |
| 81 | 3.74707 | 0.541243 |
| 99 | 4.25293 | 0.573427 |
| 117 | 4.42243 | 0.623803 |
| 135 | 3.94814 | 0.646731 |
| 153 | 3.29499 | 0.514362 |
| 171 | 3.07802 | 0.689077 |
