Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.725 GeV | |
| Ebeam : | 5.75 GeV |
|

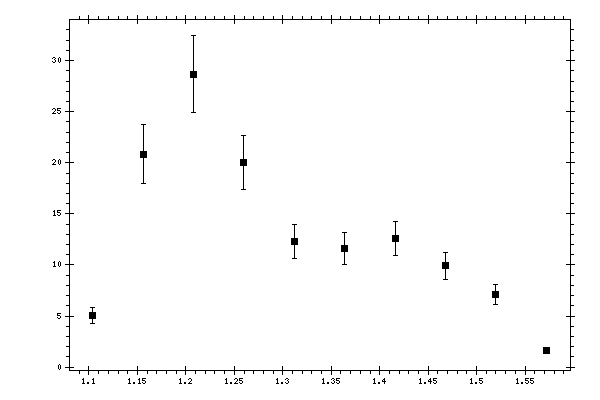

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10384 | 5.07925 | 0.768619 |
| 1.15585 | 20.8598 | 2.85356 |
| 1.20786 | 28.6609 | 3.7628 |
| 1.25987 | 20.0358 | 2.65573 |
| 1.31188 | 12.2917 | 1.63803 |
| 1.36389 | 11.607 | 1.5472 |
| 1.4159 | 12.6145 | 1.66948 |
| 1.46791 | 9.91027 | 1.34583 |
| 1.51992 | 7.09258 | 1.00784 |
| 1.57193 | 1.64007 | 0.272077 |
