Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.725 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

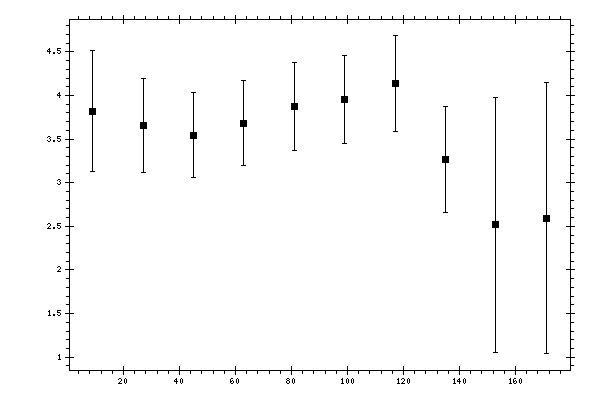

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 3.82136 | 0.694553 |
| 27 | 3.65609 | 0.537947 |
| 45 | 3.54336 | 0.489099 |
| 63 | 3.68217 | 0.487677 |
| 81 | 3.86922 | 0.505367 |
| 99 | 3.95592 | 0.505628 |
| 117 | 4.13609 | 0.547462 |
| 135 | 3.265 | 0.606457 |
| 153 | 2.51673 | 1.46406 |
| 171 | 2.595 | 1.5486 |
