Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.75 GeV | |
| Ebeam : | 5.75 GeV |
|

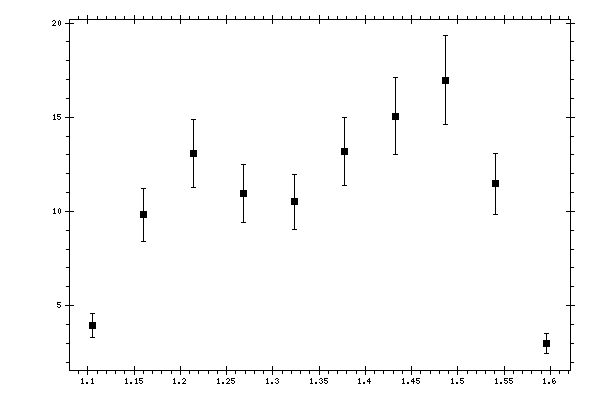

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.10509 | 3.94183 | 0.637723 |
| 1.1596 | 9.82644 | 1.39701 |
| 1.21411 | 13.0856 | 1.81823 |
| 1.26862 | 10.9498 | 1.53975 |
| 1.32313 | 10.5127 | 1.46083 |
| 1.37764 | 13.1727 | 1.81238 |
| 1.43215 | 15.0601 | 2.04357 |
| 1.48666 | 16.9595 | 2.36273 |
| 1.54117 | 11.457 | 1.63146 |
| 1.59568 | 2.98513 | 0.510027 |
