Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.75 GeV | |
| Ebeam : | 5.75 GeV |
|

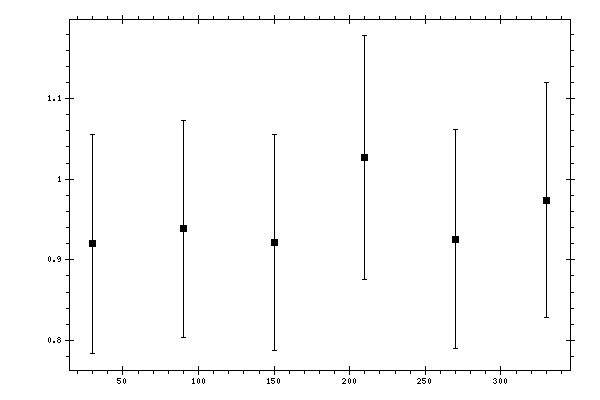

Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 30 | 0.919875 | 0.135655 |
| 90 | 0.938402 | 0.134605 |
| 150 | 0.921244 | 0.133991 |
| 210 | 1.02657 | 0.151283 |
| 270 | 0.925561 | 0.135917 |
| 330 | 0.97407 | 0.145546 |
