Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.75 GeV | |
| Ebeam : | 5.75 GeV |
|

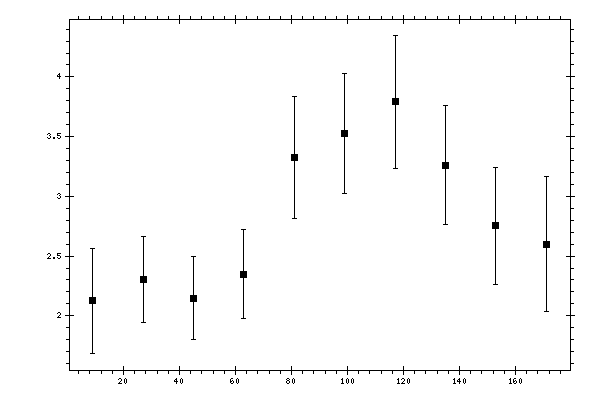

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.12423 | 0.436907 |
| 27 | 2.30593 | 0.358288 |
| 45 | 2.14674 | 0.346872 |
| 63 | 2.34849 | 0.372577 |
| 81 | 3.32521 | 0.514196 |
| 99 | 3.52691 | 0.504587 |
| 117 | 3.79022 | 0.553314 |
| 135 | 3.26215 | 0.494441 |
| 153 | 2.75253 | 0.487951 |
| 171 | 2.59955 | 0.56667 |
