Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

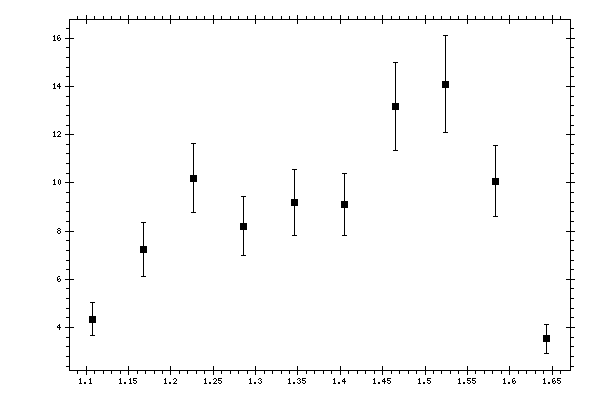

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10759 | 4.35149 | 0.700134 |
| 1.1671 | 7.23728 | 1.10576 |
| 1.22661 | 10.1961 | 1.44504 |
| 1.28612 | 8.19956 | 1.22716 |
| 1.34563 | 9.18291 | 1.36308 |
| 1.40514 | 9.08491 | 1.28518 |
| 1.46465 | 13.1666 | 1.84161 |
| 1.52416 | 14.0894 | 2.01168 |
| 1.58367 | 10.0731 | 1.47825 |
| 1.64318 | 3.53653 | 0.600695 |
