Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|

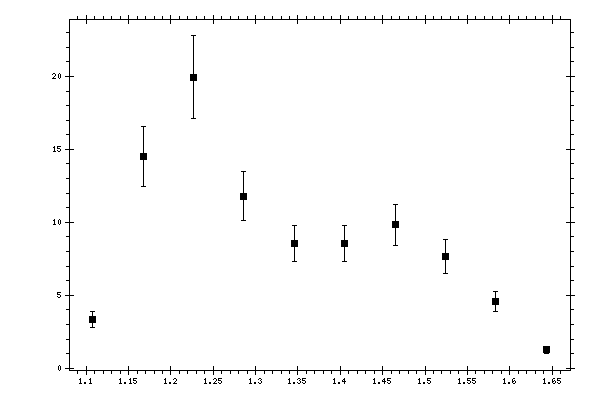

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10759 | 3.36256 | 0.548784 |
| 1.1671 | 14.5124 | 2.07068 |
| 1.22661 | 19.9626 | 2.82104 |
| 1.28612 | 11.8003 | 1.69686 |
| 1.34563 | 8.52765 | 1.23227 |
| 1.40514 | 8.55993 | 1.23911 |
| 1.46465 | 9.84022 | 1.40302 |
| 1.52416 | 7.67965 | 1.15997 |
| 1.58367 | 4.59878 | 0.692636 |
| 1.64318 | 1.25259 | 0.220104 |
