Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.825 GeV | |
| Ebeam : | 5.75 GeV |
|

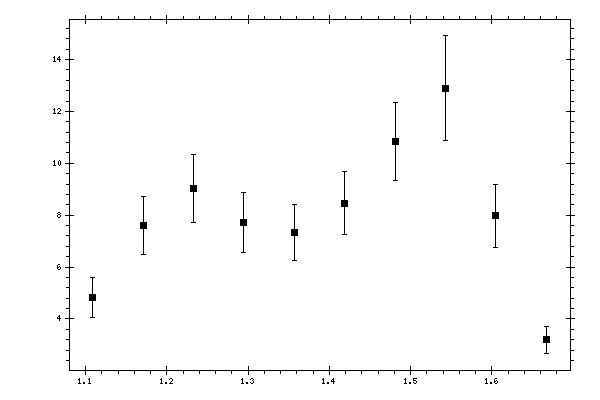

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10884 | 4.84124 | 0.767031 |
| 1.17085 | 7.58434 | 1.11845 |
| 1.23286 | 9.04482 | 1.31299 |
| 1.29487 | 7.72051 | 1.1553 |
| 1.35688 | 7.33182 | 1.06248 |
| 1.41889 | 8.46913 | 1.21149 |
| 1.4809 | 10.8552 | 1.5029 |
| 1.54291 | 12.8861 | 2.02579 |
| 1.60492 | 7.9715 | 1.19948 |
| 1.66693 | 3.19466 | 0.512303 |
