Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.825 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

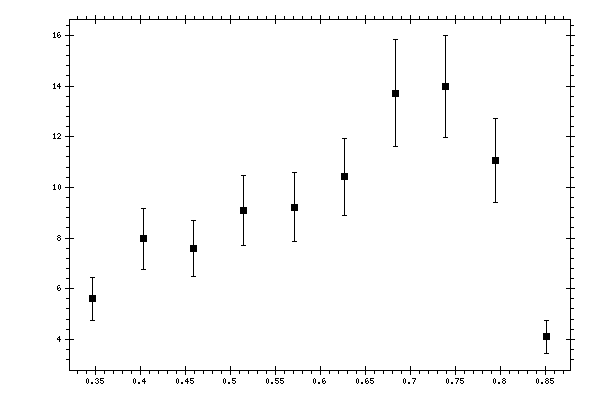

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.347144 | 5.59466 | 0.857837 |
| 0.403154 | 7.97628 | 1.20598 |
| 0.459163 | 7.57897 | 1.10697 |
| 0.515172 | 9.09888 | 1.37643 |
| 0.571181 | 9.21668 | 1.35492 |
| 0.62719 | 10.4105 | 1.52682 |
| 0.683199 | 13.7258 | 2.09832 |
| 0.739208 | 13.9723 | 2.011 |
| 0.795217 | 11.0515 | 1.65526 |
| 0.851225 | 4.09607 | 0.642578 |
