Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.85 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

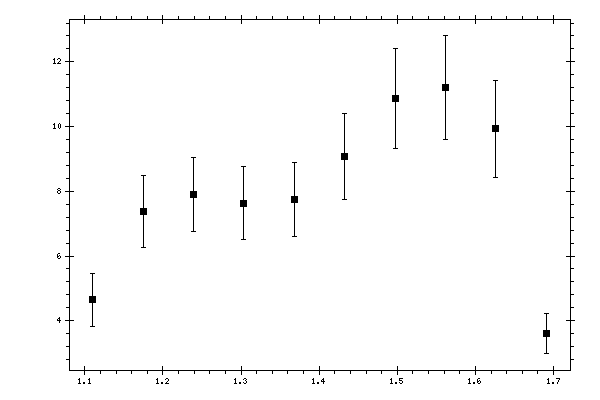

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11009 | 4.64884 | 0.813354 |
| 1.1746 | 7.37784 | 1.11895 |
| 1.23911 | 7.90027 | 1.15214 |
| 1.30362 | 7.63475 | 1.12833 |
| 1.36813 | 7.74481 | 1.15632 |
| 1.43264 | 9.08206 | 1.3342 |
| 1.49715 | 10.864 | 1.53642 |
| 1.56166 | 11.2065 | 1.59615 |
| 1.62617 | 9.94015 | 1.49852 |
| 1.69068 | 3.61809 | 0.618404 |
