Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.85 GeV | |
| Ebeam : | 5.75 GeV |
|

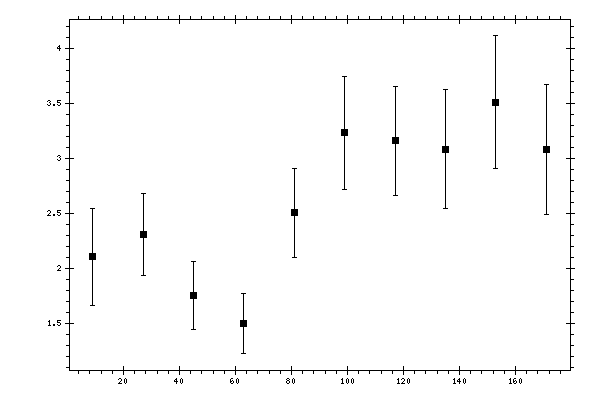

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 2.10486 | 0.442366 |
| 27 | 2.30913 | 0.374978 |
| 45 | 1.75435 | 0.312489 |
| 63 | 1.49898 | 0.269496 |
| 81 | 2.50853 | 0.404094 |
| 99 | 3.23459 | 0.515131 |
| 117 | 3.16194 | 0.498114 |
| 135 | 3.08455 | 0.540953 |
| 153 | 3.51603 | 0.602356 |
| 171 | 3.08318 | 0.590648 |
