Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

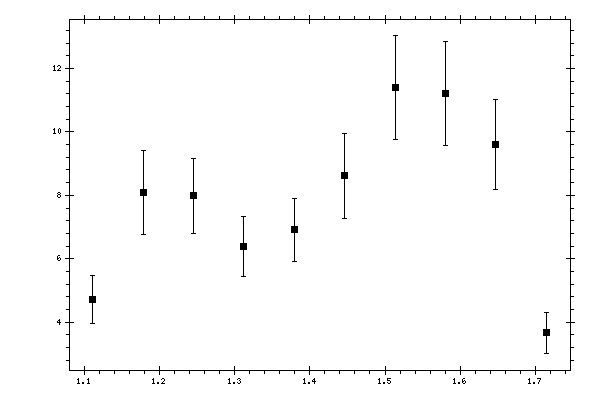

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11134 | 4.71295 | 0.762083 |
| 1.17835 | 8.09772 | 1.33203 |
| 1.24536 | 7.98366 | 1.18241 |
| 1.31237 | 6.39359 | 0.952621 |
| 1.37938 | 6.91929 | 0.995852 |
| 1.44639 | 8.61062 | 1.34522 |
| 1.5134 | 11.4008 | 1.63158 |
| 1.58041 | 11.2222 | 1.64051 |
| 1.64742 | 9.60528 | 1.40635 |
| 1.71443 | 3.66225 | 0.642224 |
