Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

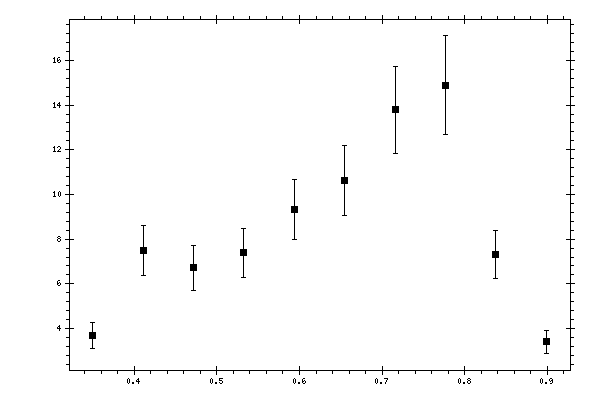

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.349644 | 3.67179 | 0.582697 |
| 0.410654 | 7.49377 | 1.13892 |
| 0.471662 | 6.71273 | 1.00966 |
| 0.532672 | 7.38439 | 1.0836 |
| 0.593681 | 9.33191 | 1.35945 |
| 0.654689 | 10.6042 | 1.56777 |
| 0.715698 | 13.7814 | 1.93993 |
| 0.776707 | 14.8973 | 2.20206 |
| 0.837716 | 7.31735 | 1.07998 |
| 0.898725 | 3.39757 | 0.49974 |
