Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

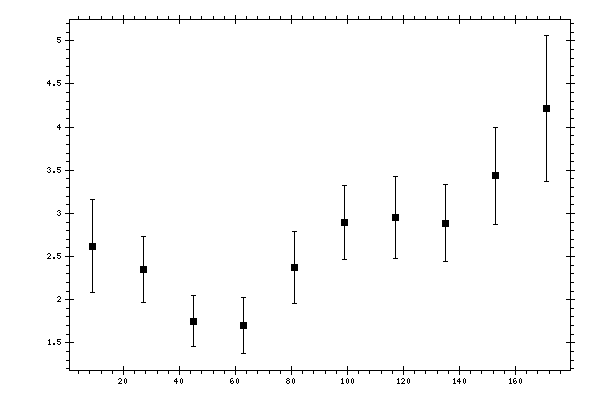

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.61945 | 0.53734 |
| 27 | 2.34957 | 0.38545 |
| 45 | 1.75226 | 0.291177 |
| 63 | 1.70386 | 0.323034 |
| 81 | 2.37276 | 0.422193 |
| 99 | 2.89542 | 0.427567 |
| 117 | 2.95222 | 0.475831 |
| 135 | 2.88381 | 0.446182 |
| 153 | 3.43595 | 0.562609 |
| 171 | 4.2123 | 0.845129 |
