Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|

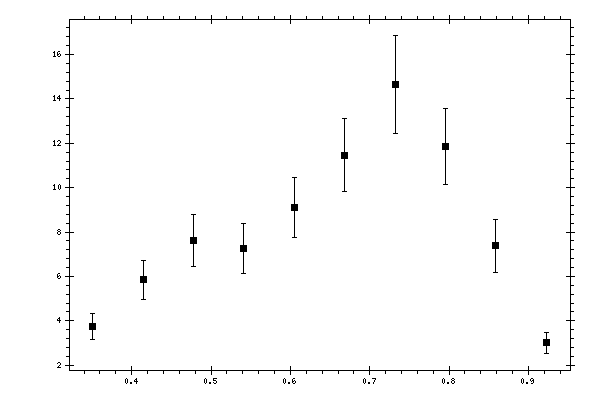

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.350895 | 3.72387 | 0.586893 |
| 0.414403 | 5.842 | 0.881252 |
| 0.477913 | 7.61514 | 1.17015 |
| 0.541422 | 7.26877 | 1.13065 |
| 0.604931 | 9.10606 | 1.34788 |
| 0.66844 | 11.4609 | 1.64314 |
| 0.731948 | 14.6335 | 2.20692 |
| 0.795458 | 11.8579 | 1.72586 |
| 0.858967 | 7.3709 | 1.2159 |
| 0.922476 | 3.00065 | 0.457932 |
