Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

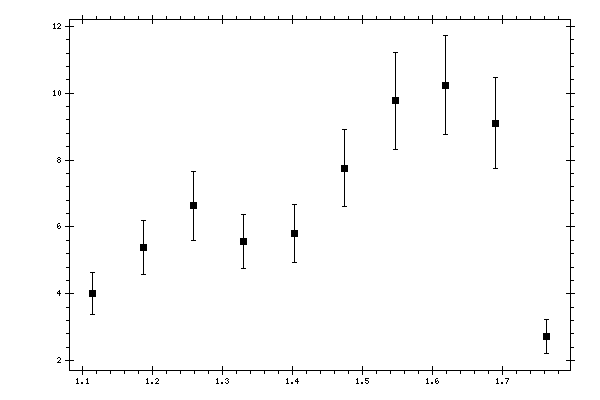

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11384 | 3.99854 | 0.632258 |
| 1.18585 | 5.38546 | 0.815621 |
| 1.25786 | 6.62911 | 1.03771 |
| 1.32987 | 5.5622 | 0.807693 |
| 1.40188 | 5.79592 | 0.863651 |
| 1.47389 | 7.76241 | 1.14594 |
| 1.5459 | 9.7744 | 1.45552 |
| 1.61791 | 10.2411 | 1.47613 |
| 1.68992 | 9.10442 | 1.36511 |
| 1.76193 | 2.72902 | 0.50557 |
