Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

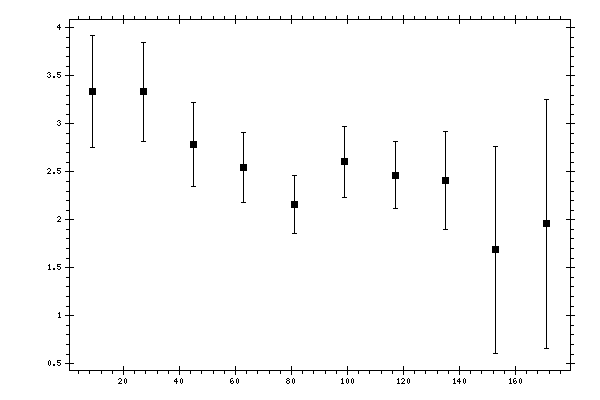

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 3.33604 | 0.581279 |
| 27 | 3.3347 | 0.513594 |
| 45 | 2.78576 | 0.43711 |
| 63 | 2.54728 | 0.366952 |
| 81 | 2.16017 | 0.305583 |
| 99 | 2.60386 | 0.371166 |
| 117 | 2.46443 | 0.351567 |
| 135 | 2.40911 | 0.512959 |
| 153 | 1.68947 | 1.07919 |
| 171 | 1.95701 | 1.29846 |
