Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

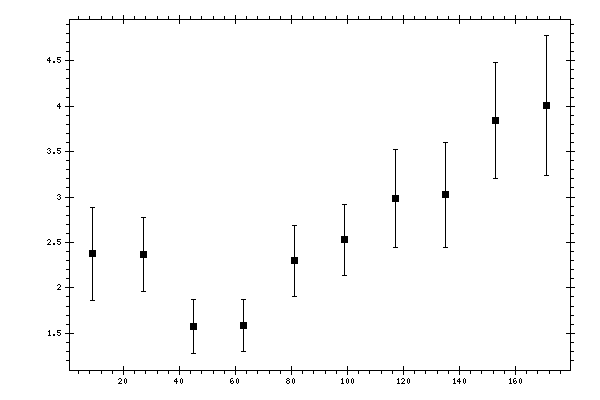

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.37729 | 0.510572 |
| 27 | 2.36647 | 0.407677 |
| 45 | 1.57463 | 0.292912 |
| 63 | 1.58774 | 0.284972 |
| 81 | 2.29822 | 0.388709 |
| 99 | 2.52744 | 0.389608 |
| 117 | 2.98435 | 0.54132 |
| 135 | 3.02441 | 0.576084 |
| 153 | 3.84355 | 0.635039 |
| 171 | 4.0046 | 0.770129 |
