Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|

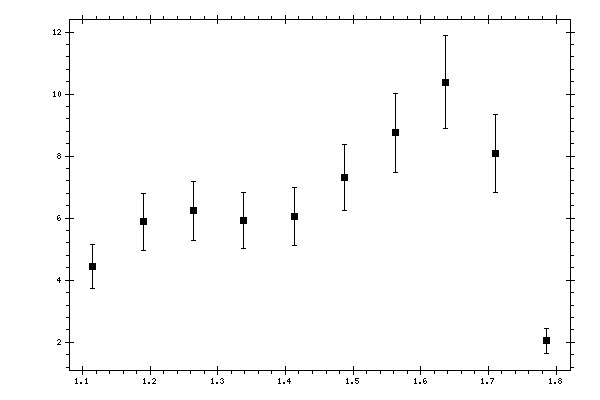

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11509 | 4.43501 | 0.711456 |
| 1.1896 | 5.87784 | 0.933474 |
| 1.26411 | 6.24061 | 0.950675 |
| 1.33862 | 5.91847 | 0.904442 |
| 1.41313 | 6.04332 | 0.929496 |
| 1.48764 | 7.30128 | 1.06925 |
| 1.56215 | 8.74668 | 1.2717 |
| 1.63666 | 10.3837 | 1.4942 |
| 1.71117 | 8.08048 | 1.25651 |
| 1.78568 | 2.04145 | 0.393307 |
