Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

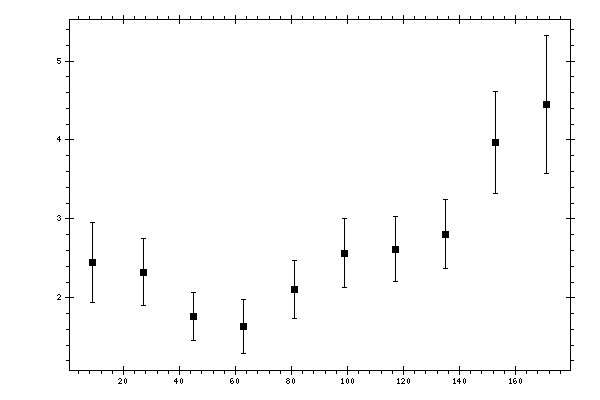

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 2.44914 | 0.502685 |
| 27 | 2.32654 | 0.424127 |
| 45 | 1.76524 | 0.30075 |
| 63 | 1.64099 | 0.34138 |
| 81 | 2.10354 | 0.366152 |
| 99 | 2.56718 | 0.435427 |
| 117 | 2.61328 | 0.411974 |
| 135 | 2.80576 | 0.436158 |
| 153 | 3.96489 | 0.646895 |
| 171 | 4.44749 | 0.871588 |
