Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|

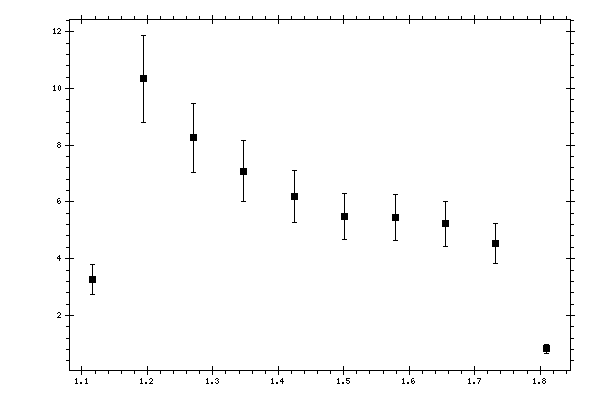

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11634 | 3.263 | 0.540608 |
| 1.19335 | 10.335 | 1.52029 |
| 1.27036 | 8.25795 | 1.22649 |
| 1.34737 | 7.09047 | 1.08103 |
| 1.42438 | 6.19476 | 0.908468 |
| 1.50139 | 5.48245 | 0.819176 |
| 1.5784 | 5.44819 | 0.804631 |
| 1.65541 | 5.23396 | 0.798117 |
| 1.73242 | 4.52709 | 0.6964 |
| 1.80943 | 0.821755 | 0.152404 |
