Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcb/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|

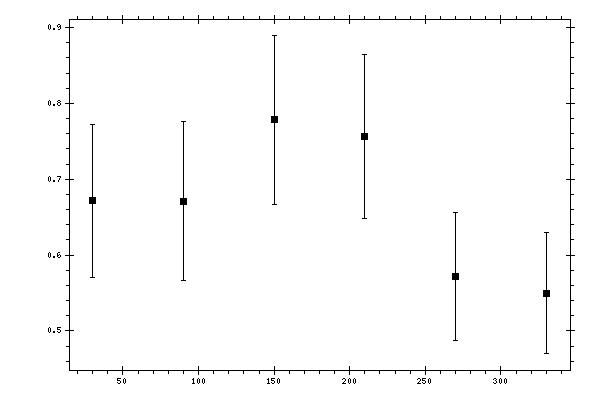

Observable quantity measured (Y axis): dσ/dψ(π+), mcb/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 30 | 0.671508 | 0.100896 |
| 90 | 0.671091 | 0.105196 |
| 150 | 0.77817 | 0.11084 |
| 210 | 0.755995 | 0.107916 |
| 270 | 0.571851 | 0.0846341 |
| 330 | 0.549923 | 0.0791963 |
