Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

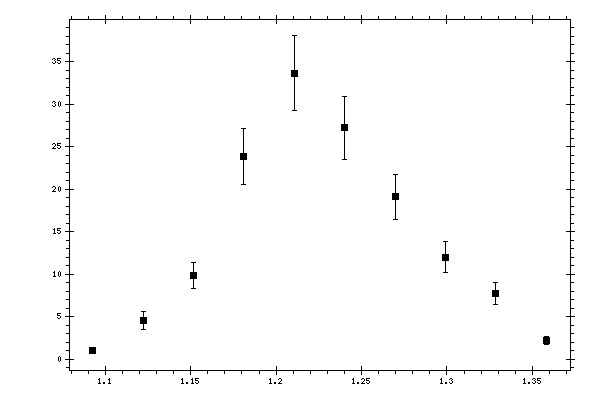

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09259 | 1.08293 | 0.34811 |
| 1.1221 | 4.59729 | 1.05897 |
| 1.15161 | 9.84266 | 1.51114 |
| 1.18112 | 23.8999 | 3.29756 |
| 1.21063 | 33.6571 | 4.40996 |
| 1.24014 | 27.2433 | 3.67252 |
| 1.26965 | 19.151 | 2.65834 |
| 1.29916 | 12.0394 | 1.84537 |
| 1.32867 | 7.74649 | 1.30506 |
| 1.35818 | 2.21645 | 0.504275 |
