Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

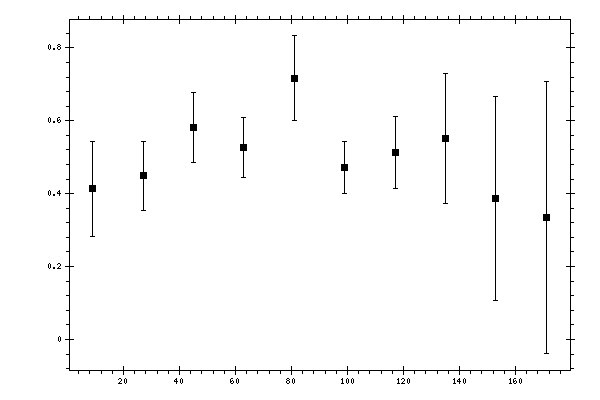

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.413269 | 0.131076 |
| 27 | 0.449094 | 0.0951533 |
| 45 | 0.580536 | 0.0961288 |
| 63 | 0.525598 | 0.0821296 |
| 81 | 0.717066 | 0.115918 |
| 99 | 0.472701 | 0.0714424 |
| 117 | 0.512351 | 0.0981 |
| 135 | 0.551485 | 0.177481 |
| 153 | 0.386349 | 0.280439 |
| 171 | 0.335137 | 0.372632 |
