Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.45 GeV | |
| Ebeam : | 5.75 GeV |
|

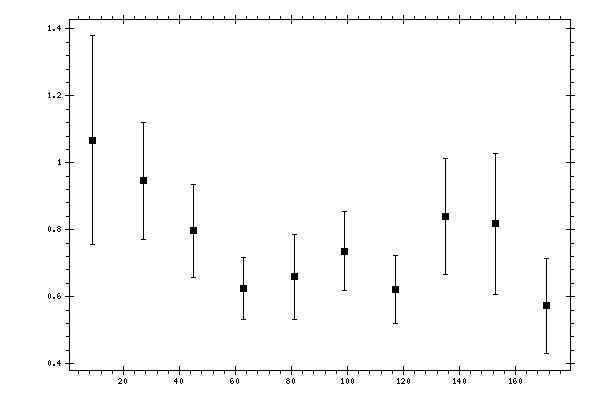

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.0673 | 0.311942 |
| 27 | 0.946326 | 0.174594 |
| 45 | 0.796832 | 0.1385 |
| 63 | 0.624713 | 0.092431 |
| 81 | 0.659284 | 0.126784 |
| 99 | 0.735721 | 0.11848 |
| 117 | 0.621451 | 0.100947 |
| 135 | 0.839096 | 0.173536 |
| 153 | 0.817393 | 0.211153 |
| 171 | 0.572209 | 0.141032 |
