Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.475 GeV | |
| Ebeam : | 5.75 GeV |
|

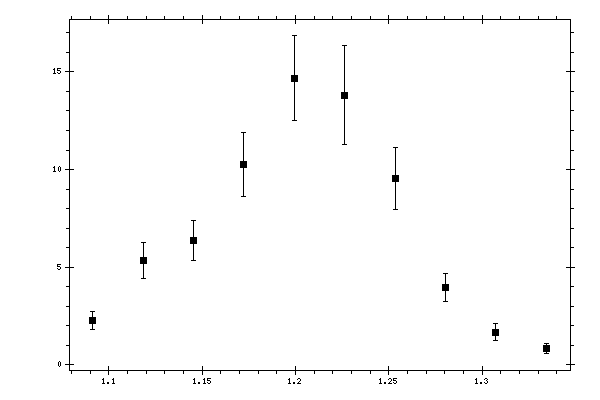

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09134 | 2.27573 | 0.482534 |
| 1.11835 | 5.35389 | 0.927658 |
| 1.14536 | 6.35732 | 1.01538 |
| 1.17237 | 10.2645 | 1.62818 |
| 1.19938 | 14.6731 | 2.16966 |
| 1.22639 | 13.8111 | 2.5363 |
| 1.2534 | 9.55477 | 1.59815 |
| 1.28041 | 3.97016 | 0.731953 |
| 1.30742 | 1.67991 | 0.427294 |
| 1.33443 | 0.859249 | 0.256608 |
