Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.475 GeV | |
| Ebeam : | 5.75 GeV |
|

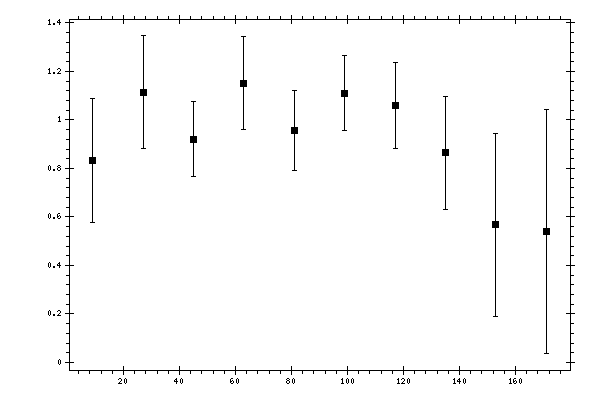

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.831758 | 0.256401 |
| 27 | 1.11387 | 0.233 |
| 45 | 0.921302 | 0.15358 |
| 63 | 1.15174 | 0.192105 |
| 81 | 0.957007 | 0.165862 |
| 99 | 1.11041 | 0.153745 |
| 117 | 1.05944 | 0.178836 |
| 135 | 0.865442 | 0.232591 |
| 153 | 0.568577 | 0.377508 |
| 171 | 0.540044 | 0.501467 |
