Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.475 GeV | |
| Ebeam : | 5.75 GeV |
|

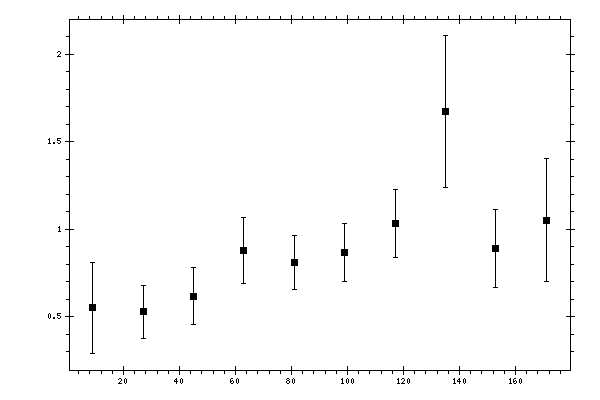

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.549701 | 0.258712 |
| 27 | 0.526268 | 0.149695 |
| 45 | 0.616988 | 0.16159 |
| 63 | 0.878774 | 0.189994 |
| 81 | 0.809026 | 0.152479 |
| 99 | 0.865248 | 0.164094 |
| 117 | 1.03385 | 0.194775 |
| 135 | 1.67126 | 0.433679 |
| 153 | 0.888813 | 0.222838 |
| 171 | 1.05162 | 0.35036 |
