Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|

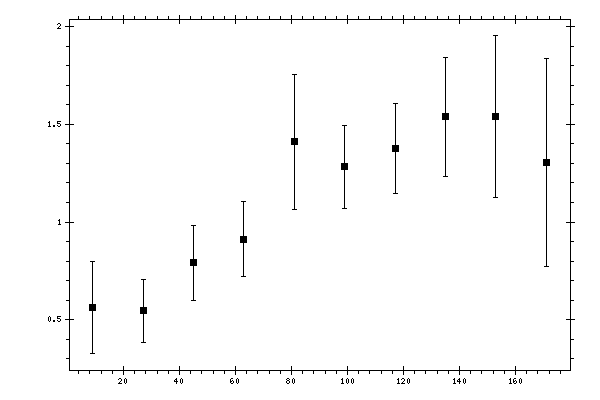

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.564799 | 0.235438 |
| 27 | 0.546733 | 0.160803 |
| 45 | 0.790681 | 0.191842 |
| 63 | 0.911696 | 0.192404 |
| 81 | 1.40971 | 0.346186 |
| 99 | 1.28218 | 0.211901 |
| 117 | 1.37642 | 0.228279 |
| 135 | 1.53826 | 0.303958 |
| 153 | 1.53814 | 0.413955 |
| 171 | 1.30644 | 0.531572 |
