Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|

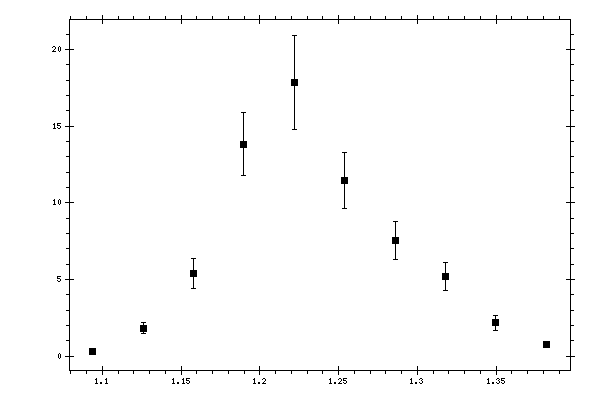

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09384 | 0.328131 | 0.13303 |
| 1.12585 | 1.82879 | 0.358034 |
| 1.15786 | 5.3899 | 0.960057 |
| 1.18987 | 13.8228 | 2.06863 |
| 1.22188 | 17.8321 | 3.04732 |
| 1.25389 | 11.4395 | 1.8226 |
| 1.2859 | 7.5577 | 1.22966 |
| 1.31791 | 5.19989 | 0.915912 |
| 1.34992 | 2.16771 | 0.48389 |
| 1.38193 | 0.757547 | 0.209894 |
