Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|

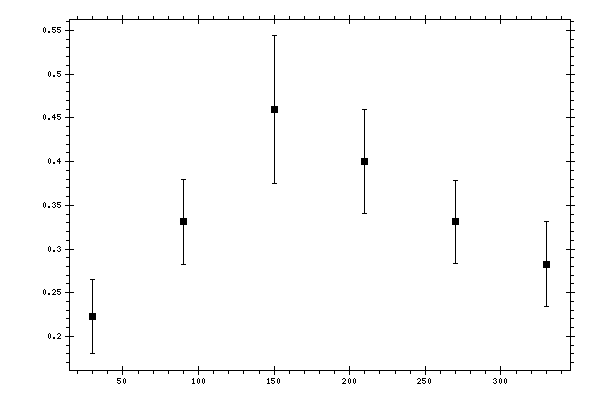

Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 30 | 0.222757 | 0.0419011 |
| 90 | 0.330983 | 0.0487403 |
| 150 | 0.459494 | 0.0843722 |
| 210 | 0.400453 | 0.0593342 |
| 270 | 0.330971 | 0.0470342 |
| 330 | 0.282629 | 0.0485859 |
