Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|

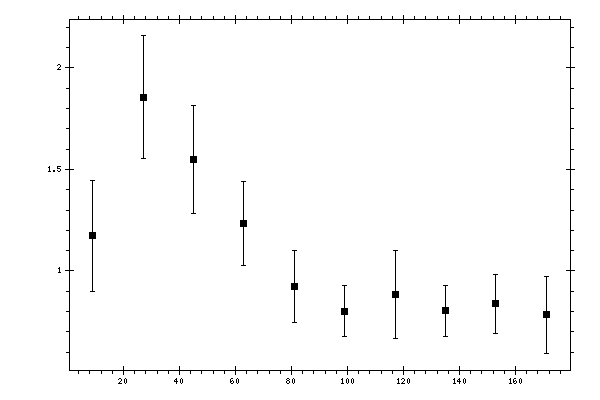

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.17371 | 0.272528 |
| 27 | 1.85565 | 0.302293 |
| 45 | 1.54808 | 0.264965 |
| 63 | 1.23562 | 0.207026 |
| 81 | 0.923823 | 0.176602 |
| 99 | 0.801979 | 0.124413 |
| 117 | 0.883848 | 0.215307 |
| 135 | 0.803709 | 0.124756 |
| 153 | 0.838763 | 0.144621 |
| 171 | 0.784105 | 0.188595 |
