Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.55 GeV | |
| Ebeam : | 5.75 GeV |
|

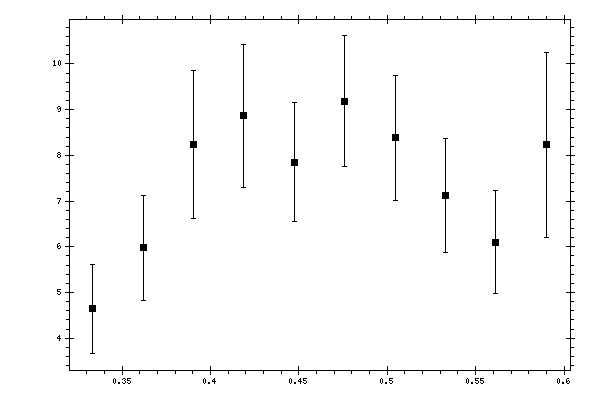

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.333394 | 4.64514 | 0.970564 |
| 0.361903 | 5.97636 | 1.15426 |
| 0.390413 | 8.2325 | 1.61992 |
| 0.418922 | 8.86713 | 1.56621 |
| 0.447431 | 7.85455 | 1.30258 |
| 0.47594 | 9.18089 | 1.43384 |
| 0.504449 | 8.39038 | 1.36637 |
| 0.532958 | 7.12226 | 1.25115 |
| 0.561467 | 6.10372 | 1.1183 |
| 0.589976 | 8.22865 | 2.02246 |
