Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.55 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

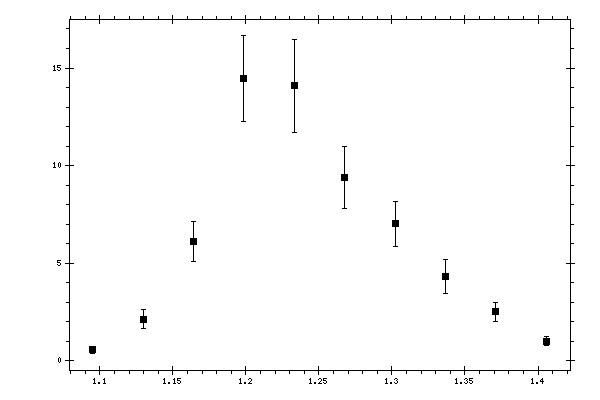

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09509 | 0.573071 | 0.17087 |
| 1.1296 | 2.1322 | 0.478655 |
| 1.16411 | 6.12811 | 1.03537 |
| 1.19862 | 14.4574 | 2.18891 |
| 1.23313 | 14.0844 | 2.36584 |
| 1.26764 | 9.37647 | 1.58343 |
| 1.30215 | 7.02188 | 1.15751 |
| 1.33666 | 4.31976 | 0.857511 |
| 1.37117 | 2.51799 | 0.485421 |
| 1.40568 | 1.01941 | 0.24509 |
