Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.55 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

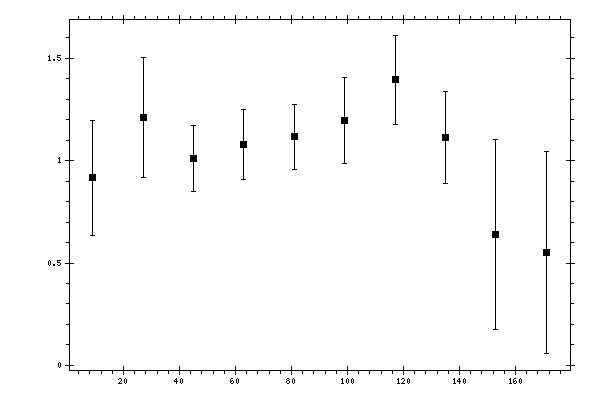

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.91698 | 0.281277 |
| 27 | 1.21069 | 0.2932 |
| 45 | 1.01116 | 0.161967 |
| 63 | 1.08027 | 0.171317 |
| 81 | 1.11595 | 0.160175 |
| 99 | 1.19468 | 0.209029 |
| 117 | 1.39396 | 0.215347 |
| 135 | 1.11286 | 0.225283 |
| 153 | 0.639111 | 0.462703 |
| 171 | 0.552064 | 0.492258 |
