Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

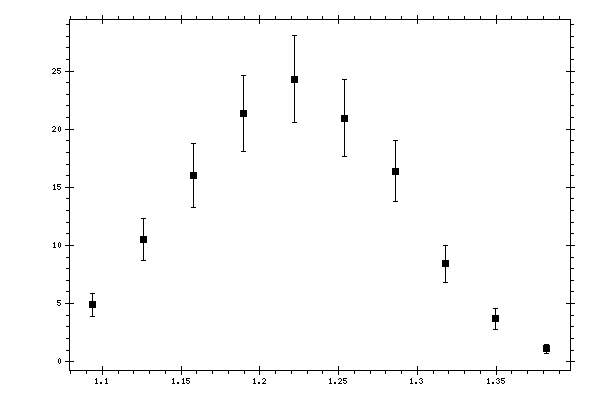

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09384 | 4.88633 | 1.01625 |
| 1.12585 | 10.5263 | 1.80427 |
| 1.15786 | 16.0095 | 2.72807 |
| 1.18987 | 21.3692 | 3.25704 |
| 1.22188 | 24.3054 | 3.72561 |
| 1.25389 | 20.9519 | 3.28306 |
| 1.2859 | 16.4017 | 2.64225 |
| 1.31791 | 8.40235 | 1.5784 |
| 1.34992 | 3.7082 | 0.903971 |
| 1.38193 | 1.11057 | 0.380362 |
