Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.625 GeV | |
| Ebeam : | 5.75 GeV |
|

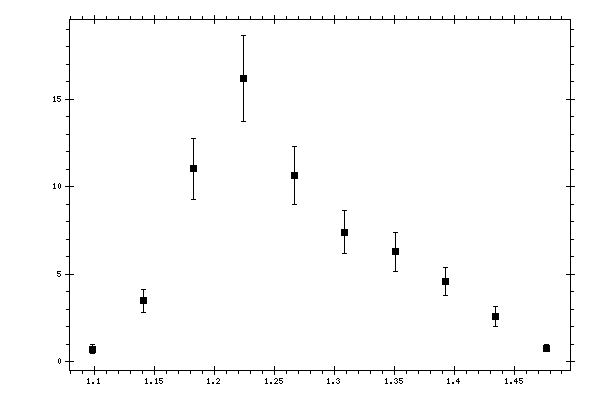

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09884 | 0.731439 | 0.234984 |
| 1.14085 | 3.48552 | 0.668857 |
| 1.18286 | 11.029 | 1.74367 |
| 1.22487 | 16.1834 | 2.4376 |
| 1.26688 | 10.6483 | 1.63286 |
| 1.30889 | 7.39884 | 1.23891 |
| 1.3509 | 6.28292 | 1.12047 |
| 1.39291 | 4.59159 | 0.793395 |
| 1.43492 | 2.60408 | 0.576996 |
| 1.47693 | 0.780283 | 0.199213 |
