Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.65 GeV | |
| Ebeam : | 5.75 GeV |
|

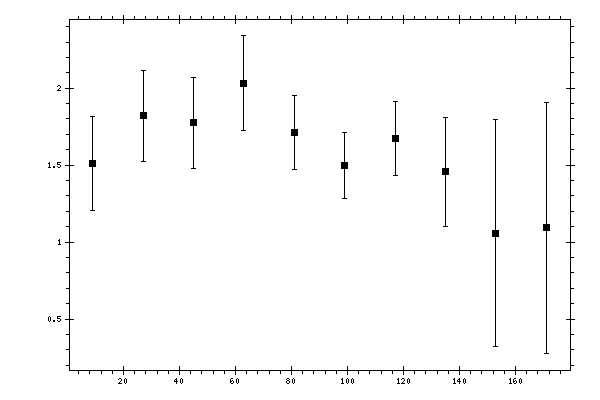

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.50959 | 0.304041 |
| 27 | 1.82 | 0.294719 |
| 45 | 1.77518 | 0.294549 |
| 63 | 2.03263 | 0.307294 |
| 81 | 1.71013 | 0.239115 |
| 99 | 1.49646 | 0.216314 |
| 117 | 1.67328 | 0.240976 |
| 135 | 1.45755 | 0.354538 |
| 153 | 1.05836 | 0.735153 |
| 171 | 1.09393 | 0.815736 |
