Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.725 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

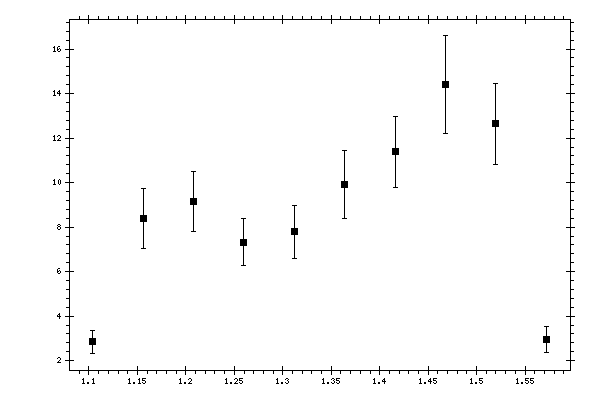

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10384 | 2.83642 | 0.500548 |
| 1.15585 | 8.39882 | 1.35518 |
| 1.20786 | 9.16606 | 1.34383 |
| 1.25987 | 7.33056 | 1.06907 |
| 1.31188 | 7.78116 | 1.19204 |
| 1.36389 | 9.91483 | 1.52126 |
| 1.4159 | 11.3821 | 1.60841 |
| 1.46791 | 14.3944 | 2.20036 |
| 1.51992 | 12.6375 | 1.8327 |
| 1.57193 | 2.95855 | 0.584921 |
