Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.75 GeV | |
| Ebeam : | 5.75 GeV |
|

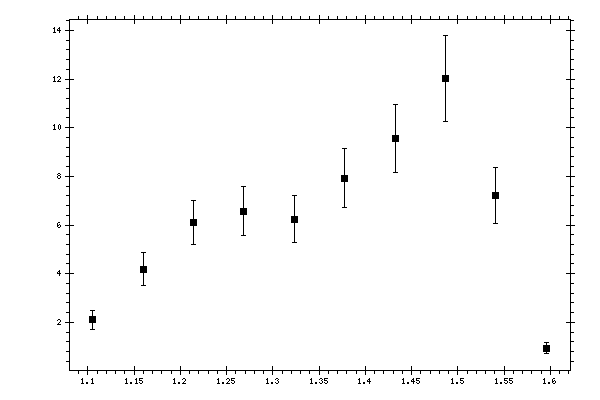

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10509 | 2.10715 | 0.386144 |
| 1.1596 | 4.19235 | 0.691176 |
| 1.21411 | 6.11599 | 0.901368 |
| 1.26862 | 6.57108 | 1.00675 |
| 1.32313 | 6.24458 | 0.954992 |
| 1.37764 | 7.92159 | 1.21303 |
| 1.43215 | 9.57043 | 1.39483 |
| 1.48666 | 12.0147 | 1.7603 |
| 1.54117 | 7.2062 | 1.15298 |
| 1.59568 | 0.947188 | 0.210499 |
