Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

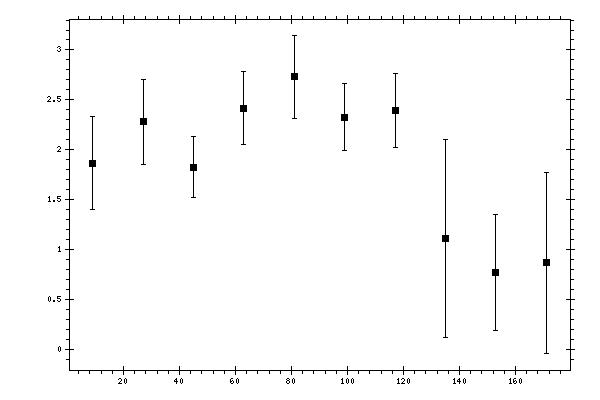

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.86634 | 0.466589 |
| 27 | 2.2819 | 0.426043 |
| 45 | 1.82751 | 0.301947 |
| 63 | 2.41858 | 0.367812 |
| 81 | 2.73037 | 0.410966 |
| 99 | 2.32901 | 0.338179 |
| 117 | 2.39273 | 0.373013 |
| 135 | 1.11028 | 0.989247 |
| 153 | 0.776588 | 0.580442 |
| 171 | 0.870334 | 0.90361 |
